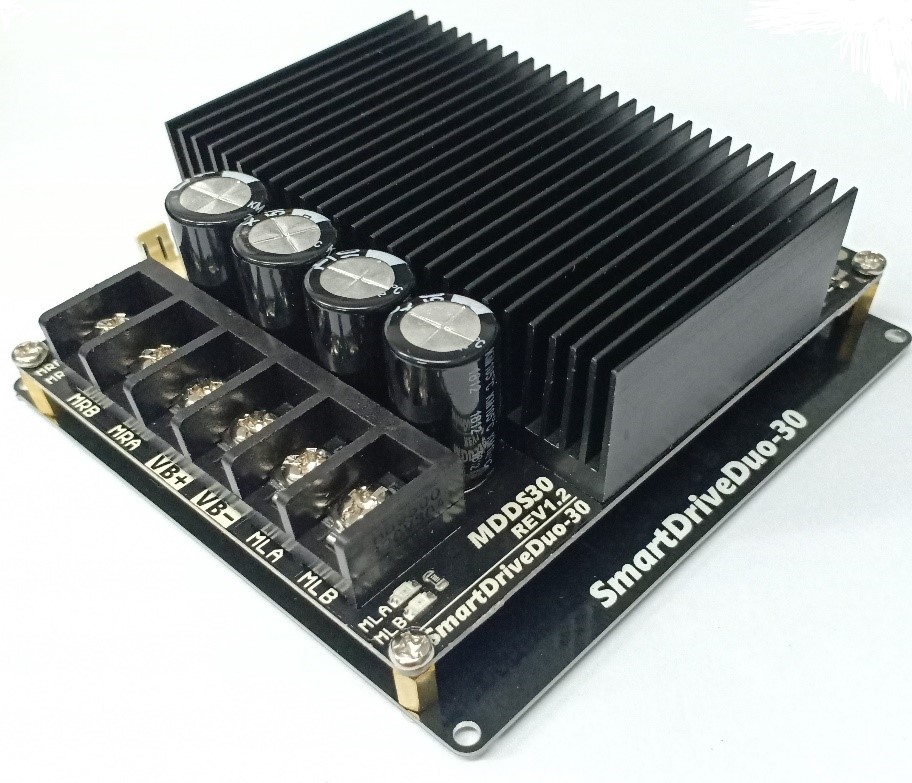

Cytron MDDS30 Smart Drive Dua-30 30Amp 7V-35V SmartDrive DC Motor Driver (2 Channels) Arduino Sumo Robot

  • Sale
  • RM199.00 MYR
  • Regular price RM260.00 MYR
  • Will be in stock after


  • Dual channel control for two brushed DC motor.

  • Support motor voltage from 7V to 35VDC.

  • Motor current per channel : 30A continuous (80A peak - 1 second)

  • On board MOSFETs are switched at 18 kHz for quiet operation.

  • Regenerative Braking.

  • On board Error LEDs to indicate: (each channel)

  • Input Error (Blinks 2 times)

  • Under Voltage Warning (Blinks 3 times)

  • Over Voltage Protection (Blinks 4 times)

  • Over Temperature Protection (Blinks 5 times)

  • Thermal protection.

  • Current limit protection.

  • Multiple input modes:

·RC (Radio Control Ready – Plug & Play)

  • Analog voltage from potentiometer/variable resistor/joystick

  • PWM and DIR (sign-magnitude and locked-antiphase) from microcontroller

  • Serial Simplified or Serial Packetized from microcontroller

  • GROVE compatible connectors for control input.

  • On board push buttons for fast test and manual operation.

  • On board LED indicators for Error, RUN, Over-current, motor output, for each channel.


  • Dimension: 81.28mm(W) x 101.60mm (L) x 42mm (H)
